067550 REAR PNEUMATIC – 2 INDEPENDENT OUTPUT / SIDE PISTON
IVECO
Twin output Power Take-off 3 gears, ratio (top output) 1:1,30. (bottom output) 1:1,72. Mounting on rear 4 bolts-window o...

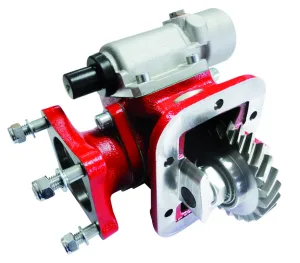

Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum shifting, mounting on left side of the Gearbox.
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 069030 | Pump (UNI) | Mechanical Shifting | - | - | - | - |
| 068930 | Pump (UNI) | Pneumatic shifting | - | - | - | - |
| 068830 | Pump (UNI) | Vacuum Shifting | - | - | - | - |
| 069002 | Flange | Mechanical Shifting | 8.50 | 218.00 | - | 155.00 |
| 068902 | Flange | Pneumatic shifting | - | - | - | - |
| 068802 | Flange | Vacuum Shifting | 8.50 | 218.00 | - | 155.00 |
| 069003 | Pump (ISO) | Mechanical Shifting | 8.50 | 218.00 | - | 155.00 |
| 068903 | Pump (ISO) | Pneumatic shifting | 8.50 | 218.00 | - | 155.00 |
| 068803 | Pump (ISO) | Vacuum Shifting | 8.50 | 218.00 | - | 155.00 |
Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 8.5 |
| Engine to PTO ratio | 1: 0.90 |
| Important: | Max. pump size: BE 45 (Great pump sizes could have interferences with the vehicle) |
| Gearbox | 2835.6 |
| Note A | Engage PTO, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m. of cable P/N 9026899 |
| Note E | Mechanical Shifting |
| Note F | Passing contact switch P/N. 100070028 |
| Note G | Passing Contact Switch P/N. 100070003 |
| Note H | Air connection, thread BSP 1/4" |
| Output type | Flange, Pump (ISO), Pump (UNI) |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
