034503 SIDE MOUNT PNEUMATIC
CLARK
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on right side of the...

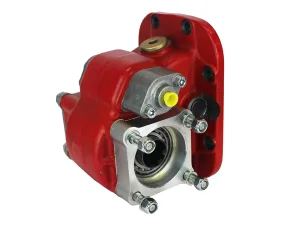

Power Take-off two gears, low different transmission ratio, constant mesh with compact output to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on 8 bolt-bottom window of the Gearbox. Internal ratio Intermittent Service Continuos Service Par Torque (Nm) Power @ 1000 rpm Par Torque (Nm) Power @ 1000 rpm CV KW CV KW 57%(B) […]
| SKU | Output type | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 1217102B | Flange | B (57%) | - | - | - | - |
| 1217102C | Flange | C (70%) | - | - | - | - |
| 1217102E | Flange | E (86%) | - | - | - | - |
| 1217102J | Flange | J (105%) | - | - | - | - |
| 1217103B | Pump (DIN 5462) | B (57%) | - | - | - | - |
| 1217103C | Pump (DIN 5462) | C (70%) | - | - | - | - |
| 1217103E | Pump (DIN 5462) | E (86%) | - | - | - | - |
| 1217103J | Pump (DIN 5462) | J (105%) | - | - | - | - |
Power Take-off two gears, low different transmission ratio, constant mesh with compact output to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on 8 bolt-bottom window of the Gearbox.
| Atributo | Valor |
|---|---|
| Mounting Position | Bottom |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 17 |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Backlash check plug |
| Gearbox | RT-613, RT-6610, RT-6613, RT-7609, RTO-613, RTO-6610, RTO-6613, RTO-7613, RTO-610, RT-610 |
| Output type | Pump (DIN 5462), Flange |
| Internal ratio | C (70%), E (86%), J (105%), B (57%) |
