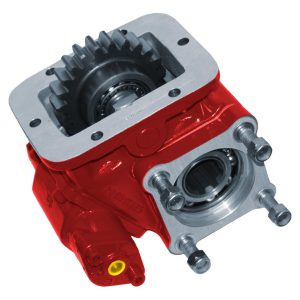

079103 PTO side mount, 2 gear constant mesh, pneumatic
MERCEDES
PTO MB G2/24-5 SIDE, 2 GEAR, PNEUMATIC. Continuous Torque (Nm): 200 Intermittent Torque (Nm): 280 Max. Power (kW):21 Mou...
PTO MB G20 SIDE MOUNT, 2 GEARS. C.MESH, PNEUMATIC Continuous Torque (Nm): 300 Intermittent Torque (Nm): 420 Max. Power (kW):32 Mounting Position: Izquierdo / Left Pump rotation: Izquierdo / Left Hand Mounting Kit: 802233
| SKU | Type of mount | Shifter type | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|---|
| 0715802 | Downwards Piston | Mechanical Shifting | Flange | - | - | - | - |
| 0715803 | Downwards Piston | Mechanical Shifting | Pump (DIN 5462) | - | - | - | - |
| 0715902 | Downwards Piston | Pneumatic shifting | Flange | - | - | - | - |
| 0715903 | Downwards Piston | Pneumatic shifting | Pump (DIN 5462) | - | - | - | - |
| 0715702 | Standard | Mechanical Shifting | Flange | - | - | - | - |
| 0715703 | Standard | Mechanical Shifting | Pump (DIN 5462) | - | - | - | - |
PTO MB G20 SIDE MOUNT, 2 GEARS. C.MESH, PNEUMATIC Continuous Torque (Nm): 300 Intermittent Torque (Nm): 420 Max. Power (kW):32 Mounting Position: Izquierdo / Left Pump rotation: Izquierdo / Left Hand Mounting Kit: 802233
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 8,25 |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Gearbox | G20 |
| Type of mount | Downwards Piston, Standard |
| Shifter type | Mechanical Shifting, Pneumatic shifting |
| Output type | Flange, Pump (DIN 5462) |
