0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
Heavy Duty Power Take-off with rotated output to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 5 bolts window of the Gearbox. Internal ratio: 1: 1.8 1: 1.5 1: 1.3 Continuous torque (Nm) 350 400 450 Intermittent torque (Nm) 490 560 630 Power (HP) 1500 r.p.m. 75 C.V. // 56 Kw 87 […]
| SKU | Internal ratio | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 0724702 | 1: 1.8 | Flange | 11.45 | 177.00 | 134.30 | - |
| 0724703 | 1: 1.8 | Pump (DIN 5462) | 11.45 | 177.00 | 134.30 | - |
| 0724902 | 1:1.3 | Flange | - | - | - | - |
| 0724903 | 1:1.3 | Pump (DIN 5462) | - | - | - | - |
| 0724802 | 1:1.5 | Flange | - | - | - | - |
| 0724803 | 1:1.5 | Pump (DIN 5462) | - | - | - | - |
Heavy Duty Power Take-off with rotated output to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 5 bolts window of the Gearbox.
| Atributo | Valor |
|---|---|
| Mounting Position | Rear |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 11,45 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Drain plug |
| Note D | Passing contact switch (9024999) |
| Note E | Pressure switch. P/N 100070018 |
| Gearbox | G3 36-5-8.98, G3 40-5-7.508, G3 45-6-8.5, G3 50-5-8.5, G3 55-6-8.5, G3 60-5-5.4, G3 60-5-6.106, G3 60-5-7.5, G3 61-5-6.1 |
| Internal ratio | 1: 1.8, 1:1.5, 1:1.3 |
| Output type | Flange, Pump (DIN 5462) |

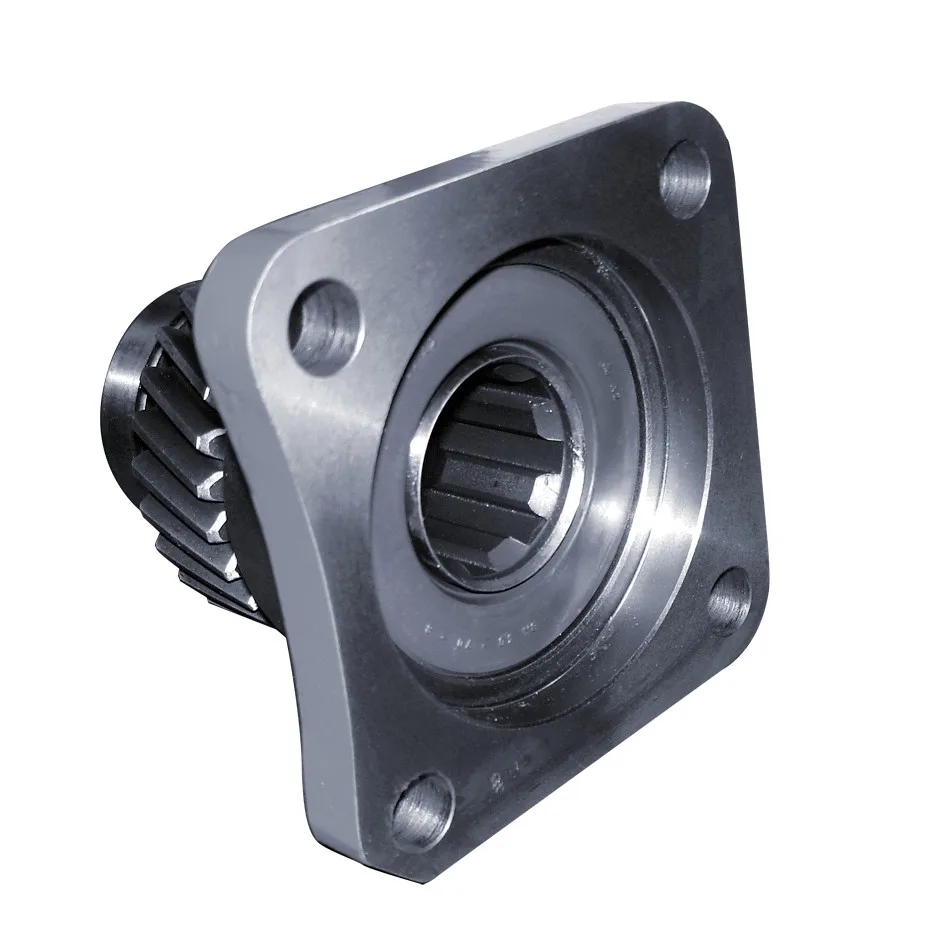

Direct Power Take-off, to connect ISO 4 bolts pumps. Mounting on rear 4 holes-window of the Gearbox.
