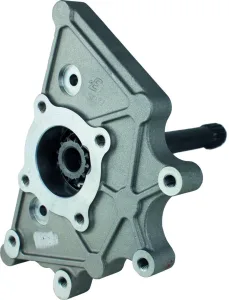

1028804 Adapter kit

1028804

Adapter Kit with splined shaft 14 teeth to connect all range of ZF S6-90 PTO’s. GEARBOX RATIO Engine to adapter kit ratio (*) 12TX-1410 /1610 /1810TD /16.69-1.0 1: 0,76 12TX-2010/2210TD 12TX-2420 /2620 /2820TD 12TX-1610 /1810 /2010TO /12.92-0.77 1: 1,26 12TX-2210 /2410 /2610TO 12TX-2820 /3020 /3220 /3420TO 16TX-1640 /1840 /2040TD /17.94-1.0 1: 0,72 16TX-2240 /2440 /2640TD […]

Variantes

Adapter Kit with splined shaft 14 teeth to connect all range of ZF S6-90 PTO’s.

	GEARBOX		RATIO
Engine to adapter kit ratio (*)	12TX-1410 /1610 /1810TD	/16.69-1.0	1: 0,76
	12TX-2010/2210TD
	12TX-2420 /2620 /2820TD
	12TX-1610 /1810 /2010TO	/12.92-0.77	1: 1,26
	12TX-2210 /2410 /2610TO
	12TX-2820 /3020 /3220 /3420TO
	16TX-1640 /1840 /2040TD	/17.94-1.0	1: 0,72
	16TX-2240 /2440 /2640TD
	16TX-2840TD
	16TX-1840 /2040 /2240TO	/14.68-0.82	1: 1,08
	16TX-2440 /2640 /2840TO
	16TX-3040 /3240 /3440TO

(*) NOTE: To get the correct ratio multiply the mentioned ratio by the internal ratio in all S6-90
releases.

Este producto no tiene especificaciones.
