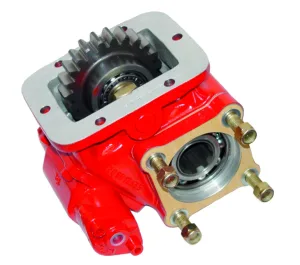

310203 SIDE MOUNT PNEUMATIC
GAZ
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on right side of the...
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on right side of the Gearbox. Optional: Passing contact switch.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 310303 | Pump (DIN 5462) | 9.00 | 215.00 | 157.00 | 158.00 |
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on right side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Right |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 9 |
| Engine to PTO ratio | 1:0,847 |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch P/N 100070028 |
| Note D | Connector with 3m. of cable P/N 9026899 |
| Gearbox | 3009 (Forward Output) |
| Output type | Flange, Pump (DIN 5462) |
