Pilling-Up directional control valve single or double acting. From 1 to 7 sections, with relief valve and multiple configuration options.

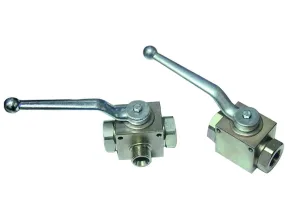

| SKU | Valve | Thread | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 9011690 | 2 way | 1/2" | - | 85.00 | 35.00 | 76.00 |
| 9011790 | 2 way | 3/4" | - | 93.00 | 50.00 | 96.00 |
| 9013890 | 2 way | 1" | - | 114.00 | 57.00 | 101.00 |
| 905911 | 3 way | 1/2" | - | 85.00 | 35.00 | 76.00 |
| 905611 | 3 way | 3/4" | - | 93.00 | 50.00 | 96.00 |
| 9011411 | 3 way | 1" | - | 114.00 | 57.00 | 101.00 |
Pilling-Up directional control valve single or double acting. From 1 to 7 sections, with relief valve and multiple configuration options.
| Atributo | Valor |
|---|---|
| Max. pressure (bar) | 500 (1/2"), 400 (3/4"), 350 (1") |
| Note A | 38.5 (1/2"), 48.5 (3/4"), 50.5 (1") |
| Note B | 50 (1/2"), 60 (3/4"), 65 (1") |
| Note C | 85 (1/2"), 93 (3/4"), 114 (1") |
| Note D | 110 (1/2"), 150 (3/4"), 150 (1") |
| Note E | 76 (1/2"), 96 (3/4"), 101 (1") |
| Note F | 45 (1/2"), 58 (3/4"), 65 (1") |
| Note G | 35 (1/2"), 50 (3/4"), 57 (1") |
| Note H | 6.5 (1/2"), 6.5 (3/4"), 8.5 (1") |
| Material | Manufactured in carbon steel and calibrated |
| Handle | Zamak, white zinc plated |
| Working temperatures | Polyamide -NBR o-ring 6.6 from -20ºC until +125ºC |
| Valve | 2 way, 3 way |
| Thread | 1/2", 3/4", 1" |
