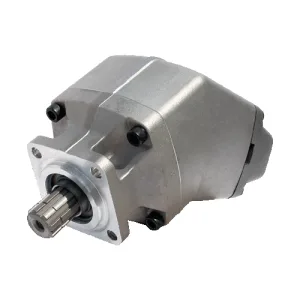

Parker’s F1 series Motors offer us reduced weight, easy installation and a special design that permits itself reach pressure peaks up to 300 bars under maximum working conditions of 3000 r.p.m. F1 motors are the cheapest option if it is consider its efficiency.
| SKU | Type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 906298 | F1-25M | 8.50 | 206.00 | 117.00 | 192.00 |
| 906198 | F1-41M | 8.50 | 206.00 | 117.00 | 192.00 |
| 906498 | F1-51M | 8.50 | 206.00 | 117.00 | 192.00 |
| 905998 | F1-61M | 8.50 | 206.00 | 117.00 | 192.00 |
| 906098 | F1-81M | 8.50 | 259.00 | 123.00 | 207.00 |
| 906598 | F1-101M | 8.50 | 259.00 | 123.00 | 207.00 |
| 907298 | F1-121M | 8.10 | 259.00 | 123.00 | 207.00 |
Parker’s F1 series Motors offer us reduced weight, easy installation and a special design that permits itself reach pressure peaks up to 300 bars under maximum working conditions of 3000 r.p.m. F1 motors are the cheapest option if it is consider its efficiency.
| Atributo | Valor |
|---|---|
| Tamaño de la bomba | 101, 25, 51, 121, 41, 61, 81 |
| Displacement (cm3/rev) | 25.6 (F1-25M), 40.9 (F1-41M), 51.1 (F1-51M), 59.5 (F1-61M), 81.6 (F1-81M), 102.9 (F1-101M),118.5 (F1-121M) |
| Speed r.p.m. max. cont. | 3000 (F1-25M), 2700 (F1-41M), 1800 (F1-51M), 1700 (F1-61M), 1500 (F1-81M), 1400 (F1-101M),1300 (F1-121M) |
| Speed r.p.m. max. int. | 3000 (F1-25M), 2700 (F1-41M), 2400 (F1-51M), 2200 (F1-61M), 2000 (F1-81M), 1800 (F1-101M),1700 (F1-121M) |
| Working pressure (P1) (bar) | 250 |
| Maximum peak pressure (P3) (bar) | 350 |
| Dimensions (mm) A | 206 (F1-25M, F1-41M, F1-51M, F1-61M), 259 (F1-81M, F1-101M, F1-121M) |
| Dimensions (mm) B | 98 (F1-25M, F1-41M, F1-51M, F1-61M), 113 (F1-81M, F1-101M, F1-121M) |
| Dimensions (mm.) C | 167 (F1-25M, F1-41M, F1-51M, F1-61M), 220 (F1-81M, F1-101M, F1-121M) |
| Dimensions (mm.) D | 3/4" (F1-25M, F1-41M, F1-51M, F1-61M), 1" (F1-81M, F1-101M, F1-121M) |
| Dimensions (mm) E | 117 (F1-25M, F1-41M, F1-51M, F1-61M), 123 (F1-81M, F1-101M, F1-121M) |
| Dimensions (mm) F | 192 (F1-25M, F1-41M, F1-51M, F1-61M), 207 (F1-81M, F1-101M, F1-121M) |
| Type | F1-25M, F1-41M, F1-51M, F1-61M, F1-81M, F1-101M, F1-121M |
