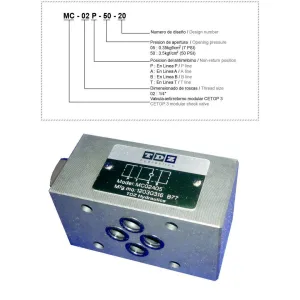

MC 02 Modular non-return valves

Variantes

SKU	Non-return position	Opening pressure	Peso (kg)	A (cm)	B (cm)	C (cm)
MC-02A-05-20	A: A Line	05: 0.35kgf/cm2 (7 PSI)	-	-	-	-
MC-02A-50-20	A: A Line	50: 3.5kgf/cm2 (50 PSI)	-	-	-	-
MC-02B-05-20	B: B Line	05: 0.35kgf/cm2 (7 PSI)	-	-	-	-
MC-02B-50-20	B: B Line	50: 3.5kgf/cm2 (50 PSI)	-	-	-	-
MC-02P-05-20	P: P Line	05: 0.35kgf/cm2 (7 PSI)	-	-	-	-
MC-02P-50-20	P: P Line	50: 3.5kgf/cm2 (50 PSI)	-	-	-	-
MC-02T-05-20	T: T Line	05: 0.35kgf/cm2 (7 PSI)	-	-	-	-
MC-02T-50-20	T: T Line	50: 3.5kgf/cm2 (50 PSI)	-	-	-	-

MC-02A-05-20

Non-return position: A: A Line

Opening pressure: 05: 0.35kgf/cm2 (7 PSI)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MC-02A-50-20

Non-return position: A: A Line

Opening pressure: 50: 3.5kgf/cm2 (50 PSI)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MC-02B-05-20

Non-return position: B: B Line

Opening pressure: 05: 0.35kgf/cm2 (7 PSI)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MC-02B-50-20

Non-return position: B: B Line

Opening pressure: 50: 3.5kgf/cm2 (50 PSI)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MC-02P-05-20

Non-return position: P: P Line

Opening pressure: 05: 0.35kgf/cm2 (7 PSI)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MC-02P-50-20

Non-return position: P: P Line

Opening pressure: 50: 3.5kgf/cm2 (50 PSI)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MC-02T-05-20

Non-return position: T: T Line

Opening pressure: 05: 0.35kgf/cm2 (7 PSI)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

MC-02T-50-20

Non-return position: T: T Line

Opening pressure: 50: 3.5kgf/cm2 (50 PSI)

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

Atributo	Valor
Maximum working pressure	250 kgf/cm³
Max flow	50LPM (13,1 GPM)
Oil viscosity	35 cst (175 ssu)
Temperatures	50º c ( 122º f )
Non-return position	P: P Line, A: A Line, B: B Line, T: T Line
Opening pressure	05: 0.35kgf/cm2 (7 PSI), 50: 3.5kgf/cm2 (50 PSI)

Atributo

Valor

Maximum working pressure

250 kgf/cm³

Max flow

50LPM (13,1 GPM)

Oil viscosity

35 cst (175 ssu)

Temperatures

50º c ( 122º f )

Non-return position

P: P Line, A: A Line, B: B Line, T: T Line
