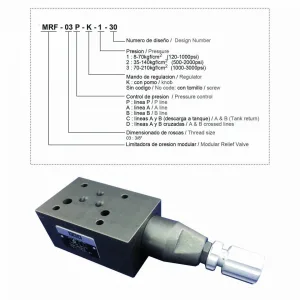

MRF 03 Modular relief valve

MRF 03
CETOP 5/NG10

Variantes

SKU Pressure control Regulator Pressure adjusting range Peso (kg) A (cm) B (cm) C (cm)
MRF-03A-K-1-30 A: A Line K: with knob 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03A-K-2-30 A: A Line K: with knob 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03A-K-3-30 A: A Line K: with knob 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03A-1-30 A: A Line With adjusting screw 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03A-2-30 A: A Line With adjusting screw 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03A-3-30 A: A Line With adjusting screw 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03B-K-1-30 B: B Line K: with knob 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03B-K-2-30 B: B Line K: with knob 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03B-K-3-30 B: B Line K: with knob 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03B-1-30 B: B Line With adjusting screw 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03B-2-30 B: B Line With adjusting screw 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03B-3-30 B: B Line With adjusting screw 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03C-K-1-30 C: A & B lines (tank return) K: with knob 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03C-K-2-30 C: A & B lines (tank return) K: with knob 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03C-K-3-30 C: A & B lines (tank return) K: with knob 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03C-1-30 C: A & B lines (tank return) With adjusting screw 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03C-2-30 C: A & B lines (tank return) With adjusting screw 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03C-3-30 C: A & B lines (tank return) With adjusting screw 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03D-K-1-30 D: A & B crossed lines K: with knob 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03D-K-2-30 D: A & B crossed lines K: with knob 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03D-K-3-30 D: A & B crossed lines K: with knob 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03D-1-30 D: A & B crossed lines With adjusting screw 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03D-2-30 D: A & B crossed lines With adjusting screw 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03D-3-30 D: A & B crossed lines With adjusting screw 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03P-K-1-30 P: P Line K: with knob 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03P-K-2-30 P: P Line K: with knob 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03P-K-3-30 P: P Line K: with knob 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03P-1-30 P: P Line With adjusting screw 1: 8-70kgf/cm2 (120-1000psi) - - - -
MRF-03P-2-30 P: P Line With adjusting screw 2: 35-140kgf/cm2 (500-2000psi) - - - -
MRF-03P-3-30 P: P Line With adjusting screw 3: 70-210kgf/cm2 (1000-3000psi) - - - -
MRF-03A-K-1-30
Pressure control: A: A Line
Regulator: K: with knob
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03A-K-2-30
Pressure control: A: A Line
Regulator: K: with knob
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03A-K-3-30
Pressure control: A: A Line
Regulator: K: with knob
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03A-1-30
Pressure control: A: A Line
Regulator: With adjusting screw
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03A-2-30
Pressure control: A: A Line
Regulator: With adjusting screw
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03A-3-30
Pressure control: A: A Line
Regulator: With adjusting screw
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03B-K-1-30
Pressure control: B: B Line
Regulator: K: with knob
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03B-K-2-30
Pressure control: B: B Line
Regulator: K: with knob
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03B-K-3-30
Pressure control: B: B Line
Regulator: K: with knob
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03B-1-30
Pressure control: B: B Line
Regulator: With adjusting screw
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03B-2-30
Pressure control: B: B Line
Regulator: With adjusting screw
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03B-3-30
Pressure control: B: B Line
Regulator: With adjusting screw
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03C-K-1-30
Pressure control: C: A & B lines (tank return)
Regulator: K: with knob
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03C-K-2-30
Pressure control: C: A & B lines (tank return)
Regulator: K: with knob
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03C-K-3-30
Pressure control: C: A & B lines (tank return)
Regulator: K: with knob
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03C-1-30
Pressure control: C: A & B lines (tank return)
Regulator: With adjusting screw
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03C-2-30
Pressure control: C: A & B lines (tank return)
Regulator: With adjusting screw
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03C-3-30
Pressure control: C: A & B lines (tank return)
Regulator: With adjusting screw
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03D-K-1-30
Pressure control: D: A & B crossed lines
Regulator: K: with knob
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03D-K-2-30
Pressure control: D: A & B crossed lines
Regulator: K: with knob
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03D-K-3-30
Pressure control: D: A & B crossed lines
Regulator: K: with knob
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03D-1-30
Pressure control: D: A & B crossed lines
Regulator: With adjusting screw
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03D-2-30
Pressure control: D: A & B crossed lines
Regulator: With adjusting screw
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03D-3-30
Pressure control: D: A & B crossed lines
Regulator: With adjusting screw
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03P-K-1-30
Pressure control: P: P Line
Regulator: K: with knob
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03P-K-2-30
Pressure control: P: P Line
Regulator: K: with knob
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03P-K-3-30
Pressure control: P: P Line
Regulator: K: with knob
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03P-1-30
Pressure control: P: P Line
Regulator: With adjusting screw
Pressure adjusting range: 1: 8-70kgf/cm2 (120-1000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03P-2-30
Pressure control: P: P Line
Regulator: With adjusting screw
Pressure adjusting range: 2: 35-140kgf/cm2 (500-2000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -
MRF-03P-3-30
Pressure control: P: P Line
Regulator: With adjusting screw
Pressure adjusting range: 3: 70-210kgf/cm2 (1000-3000psi)
Peso (kg): -
A (cm): -
B (cm): -
C (cm): -

AtributoValor
Maximum working pressure 250 kgf/cm³
Max flow 50LPM (13,1 GPM)
Oil viscosity 35 cst (175 ssu)
Temperatures 50º c ( 122º f )
Pressure control B: B Line, D: A & B crossed lines, C: A & B lines (tank return), P: P Line, A: A Line
Regulator K: with knob, With adjusting screw
Pressure adjusting range 3: 70-210kgf/cm2 (1000-3000psi), 1: 8-70kgf/cm2 (120-1000psi), 2: 35-140kgf/cm2 (500-2000psi)
