0725003 Rear Pneumatic

Heavy Duty, rear PTO with ISO 4 bolts rotated output. Pneumatic shifting. Optional bayonet or pressure switch. Internal Ratio 1: 1.8 1: 1.5 1: 1.3 Torque (Nm) Continuous 350 400 450 Intermittent 490 560 630 Power (1000 r.p.m.) 75 C.V // 6 kW 85 C.V // 64 kW 96 C.V // 72 kW Mounting […]

Variantes

SKU	Output type	Internal ratio	Peso (kg)	A (cm)	B (cm)	C (cm)
0725003	Pump (DIN 5462)	1: 1.8	-	-	-	-
0725002	Flange	1: 1.8	-	-	-	-
0725103	Pump (DIN 5462)	1:1.5	12.00	138.50	112.00	185.50
0725102	Flange	1:1.5	-	-	-	-
0725203	Pump (DIN 5462)	1:1.3	12.00	138.50	112.00	185.50
0725202	Flange	1:1.3	-	-	-	-

0725003

Output type: Pump (DIN 5462)

Internal ratio: 1: 1.8

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

0725002

Output type: Flange

Internal ratio: 1: 1.8

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

0725103

Output type: Pump (DIN 5462)

Internal ratio: 1:1.5

Peso (kg): 12.00

A (cm): 138.50

B (cm): 112.00

C (cm): 185.50

0725102

Output type: Flange

Internal ratio: 1:1.5

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

0725203

Output type: Pump (DIN 5462)

Internal ratio: 1:1.3

Peso (kg): 12.00

A (cm): 138.50

B (cm): 112.00

C (cm): 185.50

0725202

Output type: Flange

Internal ratio: 1:1.3

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

Internal Ratio	1: 1.8	1: 1.5	1: 1.3
Torque (Nm)	Continuous	350	400	450
	Intermittent	490	560	630
Power (1000 r.p.m.)	75 C.V // 6 kW	85 C.V // 64 kW	96 C.V // 72 kW
Mounting position	Rear
Pump rotation	ClockWise
Weight (Kg)	12,5
Engine to PTO ratio	GV4 65-6/9	High	1: 1,012	1: 0,843	1: 0,731
Normal	1: 0,844	1: 0,704	1: 0,610
GV4 95-6/9	High	1: 1,012	1: 0,843	1: 0,731
Normal	1: 0,844	1: 0,704	1: 0,610
GV4 110-6/9	High	1: 1,012	1: 0,843	1: 0,731
Normal	1: 0,844	1: 0,704	1: 0,610
G4 65-6/9	1: 0,844	1: 0,704	1: 0,610
G4 65-7/11	1: 0,736	1: 0,614	1: 0,532
G4 95-6/9	1: 0,844	1: 0,704	1: 0,610
G4 95-7/11	1: 0,736	1: 0,614	1: 0,532
G4 110-6/9	1: 0,844	1: 0,704	1: 0,610
Flange Adapter
SAE	1100	906815
1300	906915
1400	907015
DIN	90	907115
100	907215
120	907315

Internal Ratio

1: 1.8

1: 1.5

1: 1.3

Torque (Nm)

Continuous

350

400

450

Intermittent

490

560

630

Power (1000 r.p.m.)

75 C.V // 6 kW

85 C.V // 64 kW

96 C.V // 72 kW

Mounting position

Rear

Pump rotation

ClockWise

Weight (Kg)

12,5

Engine to PTO ratio

GV4 65-6/9

High

1: 1,012

1: 0,843

1: 0,731

Normal

1: 0,844

1: 0,704

1: 0,610

GV4 95-6/9

High

1: 1,012

1: 0,843

1: 0,731

Normal

1: 0,844

1: 0,704

1: 0,610

GV4 110-6/9

High

1: 1,012

1: 0,843

1: 0,731

Normal

1: 0,844

1: 0,704

1: 0,610

G4 65-6/9

1: 0,844

1: 0,704

1: 0,610

G4 65-7/11

1: 0,736

1: 0,614

1: 0,532

G4 95-6/9

1: 0,844

1: 0,704

1: 0,610

G4 95-7/11

1: 0,736

1: 0,614

1: 0,532

G4 110-6/9

1: 0,844

1: 0,704

1: 0,610

Flange Adapter

SAE

1100

906815

1300

906915

1400

907015

DIN

907115

100

907215

120

907315

Atributo	Valor

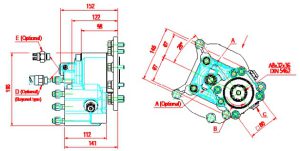

Note A	Air connection, thread 1/8” BSP
Note B	Rotation
Note C	Oil drain plug
Note D	Passing contact switch (9024999)
Note E	Pressure switch. P/N 100070018
Gearbox	GV4 95-6-9, G4 110-6-9, G4 65-6-9, G4 65-7-11, G4 95-6-9, G4 95-7-11, GV4 110-6-9, GV4 65-6-9
Output type	Flange, Pump (DIN 5462)
Internal ratio	1: 1.8, 1:1.5, 1:1.3

Atributo

Valor

Note A

Air connection, thread 1/8” BSP

Note B

Rotation

Note C

Oil drain plug

Note D

Passing contact switch (9024999)

Note E

Pressure switch. P/N 100070018

Gearbox

GV4 95-6-9, G4 110-6-9, G4 65-6-9, G4 65-7-11, G4 95-6-9, G4 95-7-11, GV4 110-6-9, GV4 65-6-9

Output type

Flange, Pump (DIN 5462)

Internal ratio

1: 1.8, 1:1.5, 1:1.3
