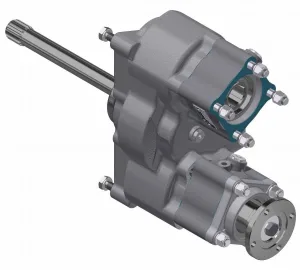

1029950 Rear Pneumatic

1029950

Independent, twin output PTO internal ratio 1:1,60 constant mesh. Pneumatic shifting, mounting rear 9 bolts-window of the Gearbox. Optional: Passing contact switches. GEARBOX RATIO Engine to PTO ratio 12TX 1410 /1610 /1810 /2010 /2210 /2420 /2620 /2820 TD /16.69-1.0 1:1.22 1610 /1810 /2010 /2210 /2410 /2610 /2820 /3020 /3220 /3420 TO /12.92-0.77 1:2.02 16TX 1640 […]

Variantes

Independent, twin output PTO internal ratio 1:1,60 constant mesh. Pneumatic shifting, mounting rear 9 bolts-window of the Gearbox. Optional: Passing contact switches.

	GEARBOX				RATIO
Engine to PTO ratio	12TX	1410 /1610 /1810 /2010 /2210 /2420 /2620 /2820	TD	/16.69-1.0	1:1.22
	12TX	1610 /1810 /2010 /2210 /2410 /2610 /2820 /3020 /3220 /3420	TO	/12.92-0.77	1:2.02
	16TX	1640 /1840 /2040 /2240 /2440 /2640 /2840	TD	/17.94-1.0	1:1.15
	16TX	1840 /2040 /2240 /2440 /2640 /2840TO /3040 /3240 /3440	TO	/14.68-0.82	1:1.73

Este producto no tiene especificaciones.
