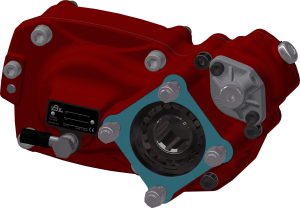

07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Heavy Duty Power Take-off two gears, constant mesh, lubrication port, internal ratio 1: 1,62 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. switch.
Technical Datasheet | Mounting Instructions | Spare part list
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 11123K03 | Pump (DIN 5462) | - | - | - | - |
| 11123K02 | Flange | - | - | - | - |
Heavy Duty Power Take-off two gears, constant mesh, lubrication port, internal ratio 1: 1,62 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. switch.
Technical Datasheet | Mounting Instructions | Spare part list
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 400 |
| Intermittent Torque (Nm) | 560 |
| Power (1000 r.p.m.) | 57 C.V // 43 KW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 18 |
| Output type | Pump (DIN 5462), Flange |
