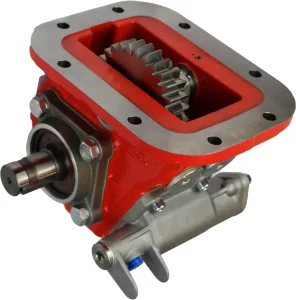

2500 SAE 8 Hole, Two Gear-Low Speed – Standard Mounting

Compatible with Eaton Endurant HD and the new XD / XD Pro series transmissions. The 2500 series PTO has a single low-speed “Z” ratio. Standard version manufactured with output SAE 1.25-inch keyed shaft or special version with a 4-bolt ISO flange pump output and an 8-spline DIN shaft.

Features and benefits:

• Optimized housing design for this type of gearbox, ensuring easy and interference-free installation
• Industry exclusive idler shaft with locking nut and snap ring.
• Deep gear tooth carburization for longer gear life.
• Larger flange mounting hardware provides additional support and reduces failures caused by heavy pumps – best in class.
• Industry leading Garlock gasket material provides better tear resistance and easier installation, with Viton o-ring material & shaft seals to prevent leaks.
• ease of installation.
• Robust construction, with taper roller bearings
• Quiet operational noise levels for an improved operator experience.

Main applications: Product pumping area, both in the segment of light liquids such as fuels, solvents, and petrochemicals, as well as in the segment of thicker liquids such as residual fuels and resins
