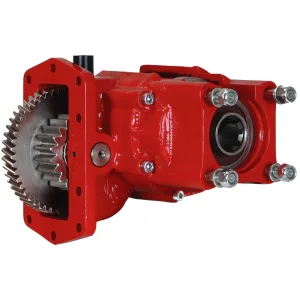

3252 Series

The 3252 is a new, medium-duty, low-profile PTO, engineered to assist with the space constraints that are faced in modern trucks. An internal lubrication design eliminates one hose and reduces install time, saving unnecessary cost. A wide range of output and gear ratio options allows the 3252 to fit many applications.

3131, 3151, 3252 PTOs Manual | 3252 PTO Data Sheet | 3252 PTO Part List

Variantes

Internally lubricated for ease of installation, improved bearing life and cooler operation.
Clutch pack material is designed to provide smooth engagement and long life.
Low profile housing features a rotatable solenoid cover for easier installation in tight clearance applications.
Higher torque rating than competitors within the same PTO segment.
All hoses, hardware, and wiring are included.

Competitive with:
Chelsea 280 and Muncie CS24
Torque ratings: up to 410 lb. ft.

Typical Applications:

Refuse trucks
Utility trucks
Fire/rescue vehicles
Dump Truck and Trailer
And More…..

3131, 3151, 3252 PTOs Manual | 3252 PTO Data Sheet | 3252 PTO Part List

Engine to PTO ratio
INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
	Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m.	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m
51%(A)	410	39	78	310	30	59
54%(B)	410	39	78	310	30	59
59%(C)	400	38	76	300	29	57
70%(E)	380	36	72	280	27	54
76% (G)	360	34	68	260	25	50
82% (J)	340	33	65	250	24	48
96% (M)	320	31	61	230	22	44
122% (O)	270	26	51	200	19	38
