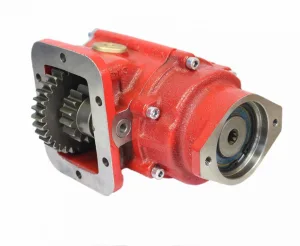

3300 Series Side Mount Hydraulic

3300 Series

This versatile, 6 bolt, hotshift PTO is designed for the 1000/2000 Allison transmission family, and Aisin automatic transmissions. The 3200 (manual transmission) and 3300 series are offered with multiple ratios and outputs, as well as electric over hydraulic controls.

3300 PTO Manual | 3300 PTO Data Sheet | 3300 PTO Part List

Variantes

Housing design permits “shaft high” and “shaft low” installation.
Industry exclusive idler shaft with locking nut.
All hoses, hardware, and wiring are included.
Deep gear tooth carburization process creates stronger gear surfaces for long life.
Industry leading gasket material and Viton O-ring material & shaft seals.
Symmetrical design allows for multiple configuration options to fit the application.
Clutch pack material is designed to provide smooth engagement and long life.

Competitive with:
Muncie CS6, Chelsea 271/272
Torque ratings: up to 250 lb. ft.

Typical Applications:

Dump Trucks
Tow and Recovery
Water Trucks
Service Trucks
Aerial Trucks

3300 PTO Manual | 3300 PTO Data Sheet | 3300 PTO Part List

Engine to PTO ratio
INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
	Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
	Torque (Lb. FT)	At 500 r.p.m.	At 1000 r.p.m.	Torque (Lb. FT)	At 500 r.p.m.	At 1000 r.p.m.
40%(Z)	250	25	49	178	18	35
50%(A)	250	25	49	178	18	35
55%(B)	250	25	49	178	18	35
73% (C)*	250	25	49	178	18	35
