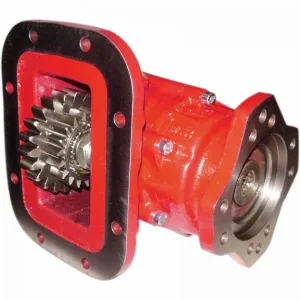

3800 Hot Shift PTO, 8 Bolt, Universal

3800f1

The 3800 series PTO was developed based on the 3200 series, which has been proven in the market for over a decade. This 8 bolt PTO meet the demands of the market for a hot shift PTO for the 8 bolt aperture. This PTO features air shifting, and a wide range of ratios and outputs.

3200 / 3800 PTO Manual | 3800 PTO Data Sheet | 3800 PTO Part List

Variantes

Symmetrical housing design allows for multiple configuration options to fit the application.
Housing design permits “shaft high” and “shaft low” installation.
Industry exclusive idler shaft with locking nut.
Industry leading gasket material and Viton O-ring material & shaft seals.
Deep gear tooth carburization process creates stronger gear surfaces for long life.
Clutch pack material is designed to provide smooth engagement and long life.

Competitive with:
Muncie CS8, Chelsea 282
Torque ratings: up to 250 lb. ft.

Typical Applications:

Dump Trucks
Water Trucks
Spreaders
Walking Floor
Low Boy
And more…..

3200 / 3800 PTO Manual | 3800 PTO Data Sheet | 3800 PTO Part List

Torque working, with an engage pressure of 116 PSI or higher
INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
	Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m.	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m
40% (Z)	250	25	49	178	18	35
50% (A)	250	25	49	178	18	35
55% (B)	250	25	49	178	18	35
73% (C)	250	25	49	178	18	35
86% (E)	225	22	44	160	16	31
95% (J)	225	22	44	160	16	31
125% (O)	200	22	39	142	14	28
