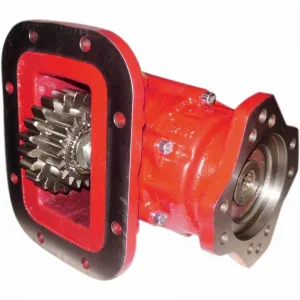

3810 Hot Shift PTO, 8 Bolt, Universal (deep mount)

3800f1-1

Hot shift 8 bolt 2 gears Pneumatic, bottom PTO. Several internal ratios. Both possibilities of
assembly 1 and 3 in the same housing. All input gears from 1000 / 2000 pto fit on this series.

3200 / 3800 PTO Manual | 3800 PTO Data Sheet | 3800 PTO Part List

Variantes

Hot shift 8 bolt 2 gears Pneumatic, bottom PTO. Several internal ratios. Both possibilities of
assembly 1 and 3 in the same housing. All input gears from 1000 / 2000 pto fit on this series.

3200 / 3800 PTO Manual | 3800 PTO Data Sheet | 3800 PTO Part List

Torque working, with an engage pressure of 116 PSI or higher
INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
	Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m.	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m
40% (Z)	250	25	49	178	18	35
50% (A)	250	25	49	178	18	35
55% (B)	250	25	49	178	18	35
73% (C)	250	25	49	178	18	35
86% (E)	225	22	44	160	16	31
95% (J)	225	22	44	160	16	31
125% (O)	200	22	39	142	14	28
