07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

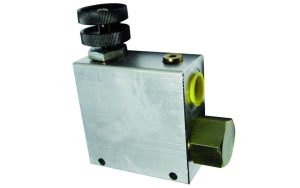

Compensated – flow regulator valve, 3 ways, with manual regulation selector.
| SKU | Thread | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 900699 | 1/2” BSP | 1.20 | 90.00 | 40.00 | 128.00 |
| 901199 | 3/4” BSP | 2.00 | 109.00 | 50.00 | 147.00 |
Compensated – flow regulator valve, 3 ways, with manual regulation selector.
| Atributo | Valor |
|---|---|
| Flow (l/min) | 80 (1/2” BSP), 120 (3/4” BSP) |
| Max. pressure (bar) | 210 |
| Note B (mm) | 90 (1/2” BSP), 109 (3/4” BSP) |
| Note C (mm) | 128 (1/2” BSP), 147 (3/4” BSP) |
| Note D (mm) | 115 (1/2” BSP), 130 (3/4” BSP) |
| Note E (mm) | 6.5 (1/2” BSP), 8.5 (3/4” BSP) |
| Note F (mm) | 64 (1/2” BSP), 87.5 (3/4” BSP) |
| Note G (mm) | 40 (1/2” BSP), 50 (3/4” BSP) |
| Thread | 1/2” BSP, 3/4” BSP |
