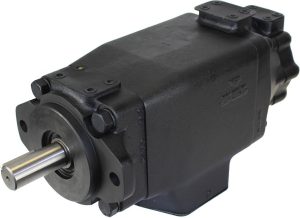

DT6DCC Triple vane Pump

DT6DCC
TRIPLE PUMPS

Vane pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Available Flows: 1st.- 14, 20, 24, 28, 31, 35, 38, 42, 45, 50 & 61 Gal/min. @ 1200 rpm 2nd.& 3rd.- 14, 20, 24, 28, 31, 35, 38, 42, […]

Variantes

Vane pumps are uni-directional units with a great versatility and a silent running.
Their cartridges are replaceable in a very easy way.
Output ports configuration can be customized.

Available Flows:

  • 1st.- 14, 20, 24, 28, 31, 35, 38, 42, 45, 50 & 61 Gal/min. @ 1200 rpm
  • 2nd.& 3rd.- 14, 20, 24, 28, 31, 35, 38, 42, 45, 50 & 61 Gal/min. @ 1200 rpm
SHAFT END SECTION (DT6D)
FLOW PRESSURE (Bar) SPEED (rpm) CARTIDGE MODEL THEORETICAL DISPLACEMENT
Lts. At 1000 rpm Gal. At 1200 rpm Intermit. contin. Max. Min.
48 14 240 210 2500 500 014 a 061 47.6 a 190.5
66 20
80 24
90 28
98 31
111 35
120 38
130 42
146 45
158 50
191 61



MIDDLE SECTION (DT6C)
FLOW PRESSURE (Bar) SPEED (rpm) CARTIDGE MODEL THEORETICAL DISPLACEMENT
Lts. At 1000 rpm Gal. At 1200 rpm Intermit. contin. Max. Min.
11 3 275 240 2800 500 014 a 061 47.6 a 190.5
17 5
21 6
26 8
34 10
37 12
46 14
58 17
64 20
70 22
79 25
89 28
100 31



COVER END SECTION (DT6C)
FLOW PRESSURE (Bar) SPEED (rpm) CARTIDGE MODEL THEORETICAL DISPLACEMENT
Lts. At 1000 rpm Gal. At 1200 rpm Intermit. contin. Max. Min.
11 3 275 240 2800 500 014 a 061 47.6 a 190.5
17 5
21 6
26 8
34 10
37 12
46 14
58 17
64 20
70 22
79 25
89 28
100 31
