067603 SIDE MOUNT VACUUM – SINGLE ACTING
IVECO
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Vacuum mechanic and pneumatic shifting. Mounting ...

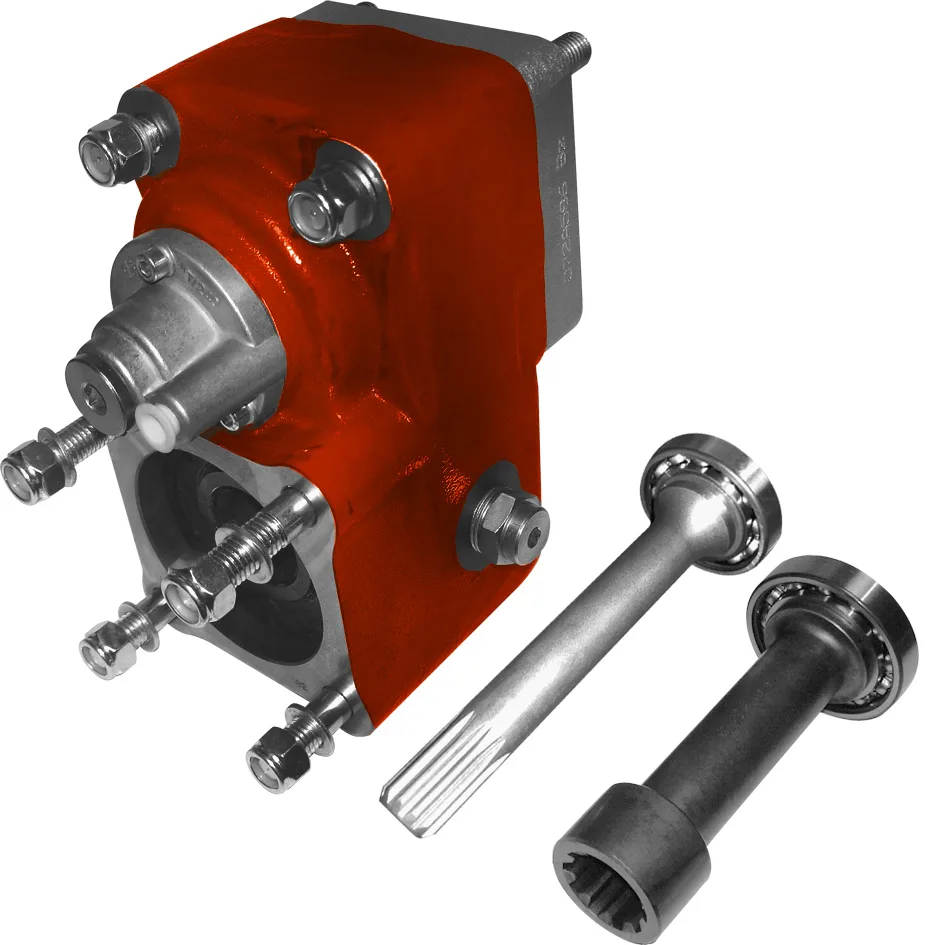

Power Take-off two gears with female or male shaft, internal ratio 1:1,35 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps. Included lubrication pipe.
| SKU | Shaft type | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 064502 | female shaft | Flange | - | - | - | - |
| 064503 | female shaft | Pump (DIN 5462) | - | - | - | - |
| 063402 | male shaft | Flange | - | - | - | - |
| 063203 | male shaft | Pump (DIN 5462) | - | - | - | - |
Power Take-off two gears with female or male shaft, internal ratio 1:1,35 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps. Included lubrication pipe.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 11 |
| Engine to PTO ratio | 1: 1,040 |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Lubrication pipe |
| Gearbox | 2895.9 |
| Shaft type | female shaft, male shaft |
| Output type | Pump (DIN 5462), Flange |
