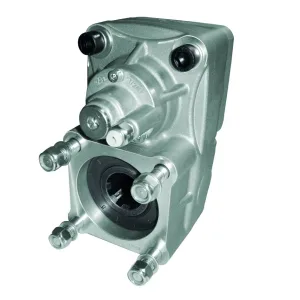

1219203 REAR PNEUMATIC HEAVY DUTY
EATON FULLER
Heavy Duty, rear PTO with ISO 4 bolts rotated output. Pneumatic shifting. Optional bayonet or pressure switch. Ge...
Power Take-off 2 gears, ratio 1:1,32 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. Optional: Passing contact switch. Engine to PTO ratio Gearbox Ratio FS-6406 AE 1:0,900
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 1211202 | Flange | - | - | - | - |
| 1211203 | Pump (DIN 5462) | - | - | - | - |
Power Take-off 2 gears, ratio 1:1,32 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect Iso 4 bolts pumps. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 9 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Oil drain plug |
| Note C | Rotation |
| Note D | Pressure switch. P/N 100070018 |
| Note E | Passing contact switch. P/N 9024999 |
| Gearbox | FS-5206B, FSO-5206B, FS-6406AE, 4106DT-7.54, 4106DT-9.03, 4106OD-6.08, FS-5206A |
| Output type | Flange, Pump (DIN 5462) |
