199303 SIDE MOUNT VACUUM- SINGLE ACTING (EASY ENGAGEMENT)
ISUZU

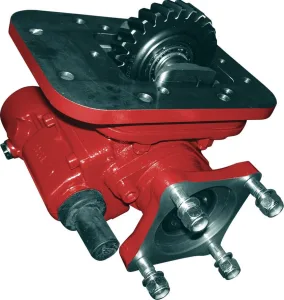

Heavy Duty Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanic and pneumatic shifting...
Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanical and pneumatic shifting, mounting on left side of the Gearbox. Engine to PTO ratio Gearbox Ratio BD 5A 1:0,720 BD 5B 1:0,654 BD 5C 1:0,654 MBD 5A 1:0,750 MBD 5B 1:0,654 MBD 5C 1:0,654 MBG 5A 1:0,720 MBG 5B 1:0,654 MBG […]
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 191102 | Flange | Mechanical Shifting | 15.00 | 218.00 | - | 152.00 |
| 194202 | Flange | Pneumatic shifting | 15.00 | 218.00 | - | 152.00 |
| 196702 | Flange | Vacuum Shifting | 15.00 | 218.00 | - | 152.00 |
| 191103 | Pump (DIN 5462) | Mechanical Shifting | 15.00 | 218.00 | - | 152.00 |
| 194203 | Pump (DIN 5462) | Pneumatic shifting | 15.00 | 218.00 | - | 152.00 |
| 196703 | Pump (DIN 5462) | Vacuum Shifting | 15.00 | 218.00 | - | 152.00 |
Power Take-off two gears, constant mesh to connect ISO 4 bolts pumps. Vacuum, mechanical and pneumatic shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 15 |
| Note A | Engage PTO, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070022 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Mechanical operation |
| Note F | Passing contact swith. P/N. 100070028 |
| Note G | Passing contact swith. P/N. 100070022 |
| Note H | Air connection, thread 1/4” BSP |
| Gearbox | BD-5A, BD-5B, BD-5C, MBD-5A, MBD-5B, MB-5C, MBF-5C, MBG 5A, MBG 5B, MBG 5C, MBG 6P |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Vacuum Shifting, Mechanical Shifting, Pneumatic shifting |
