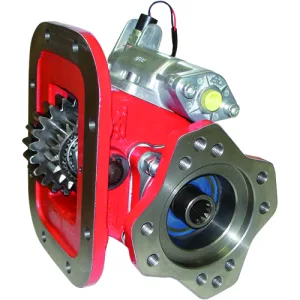

2000 SAE 8 Hole, Two Gear-Single Speed – Standard Mounting

2000SAE

Compatible with the most common transmissions in the market. The 1000 / 2000 series PTOs feature a wide range of input gear, ratio, output, and shifter options. All cast iron construction with large 12mm flange bolts to support some of the larger pumps in the market. Also available in a deep mount 1010 and 2010 […]

Variantes

Features and benefits:

Industry exclusive idler shaft with locking nut and snap ring.
Deep gear tooth carburization for longer gear life.
Larger flange mounting hardware provides additional support and reduces failures caused by heavy pumps – best in class.
Industry leading Garlock gasket material provides better tear resistance and easier installation, with Viton o-ring material & shaft seals to prevent leaks.
Symmetrical design allows for multiple configuration options and ease of installation.
Simple and robust mechanical air shift operation.
Quiet operational noise levels for an improved operator experience.

Competitive with:

Muncie TG8 and Chelsea 489
Torque ratings: up to 250 lb. ft.

Typical Applications: Dump Trucks and Trailers, Walking Floor, Low Boy, Vacuum Pumps, and more…..

1000 / 2000 PTO Manual | 2000 PTO Data Sheet | 2000 PTO Part List

Engine to PTO ratio
INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
	Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m.	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m
50%(A)	250	25	49	178	18	35
55%(B)	250	25	49	178	18	35
73%(C)	250	25	49	178	18	35
86%(E)	225	22	44	160	16	31
95% (J)	225	22	44	160	16	31
125% (O)	200	20	39	142	14	28
137% (R)	200	20	39	142	14	28
150% (S)	190	19	37	135	13	26
165% (T)	175	17	34	124	12	24
