3000 Series Side Mount Pneumatic/Hydraulic

3000 Series

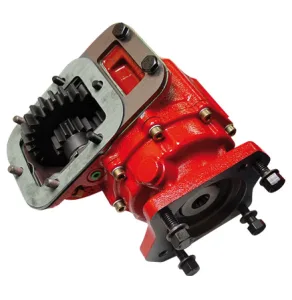

Hot Shift Power Take-off, 2 gears. Pneumatic and Hydraulic shifting. Mounting on both sides of Gearbox. Low profile housing easy to change from pneumatic to hydraulic changing only the connection end cover. 3000 PTO Part List | 3000 PTO Manual | 3000 PTO Data Sheet Engine to PTO ratio Relación motor INTERNAL RATIO INTERMITTENT SERVICE CONTINUOUS SERVICE Torque (Lb. […]

Variantes

Hot Shift Power Take-off, 2 gears. Pneumatic and Hydraulic shifting. Mounting on both sides of Gearbox. Low profile housing easy to change from pneumatic to hydraulic changing only the connection end cover.

3000 PTO Part List | 3000 PTO Manual | 3000 PTO Data Sheet

Engine to PTO ratio Relación motor
INTERNAL RATIO INTERMITTENT SERVICE CONTINUOUS SERVICE
Torque (Lb. FT) Power (HP) Torque (Lb. FT) Power (HP)
At 500 r.p.m. At. 1000 r.p.m. At 500 r.p.m. At. 1000 r.p.m.
33%(B) 310 30 59 230 22 44
42%(C) 310 30 59 230 22 44
50%(E) 280 26 53 210 20 40



Este producto no tiene especificaciones.
