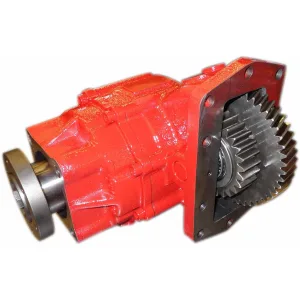

3100 Side Mount Pneumatic / Hydraulic

3100sm

REPLACED BY 3131 Hot Shift Power Take-off 2 gears. Pneumatic and Hydraulic shifting. Mounting on both sides of Gearbox. Easy to change from Pneumatic to Hydraulic. Different internal ratios. On HD series (heavy duty) is advisable to use only hydraulic shifting. 3000 / 3100 / 3300 PTO Manual | 3100 PTO Data Sheet | 3100 PTO Part List ENGINE TO PTO […]

Variantes

REPLACED BY 3131

Hot Shift Power Take-off 2 gears. Pneumatic and Hydraulic shifting. Mounting on both sides of Gearbox. Easy to change from Pneumatic to Hydraulic. Different internal ratios. On HD series (heavy duty) is advisable to use only hydraulic shifting.

3000 / 3100 / 3300 PTO Manual | 3100 PTO Data Sheet | 3100 PTO Part List

ENGINE TO PTO RATIO
INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
	Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
	Torque (Lb. FT)	At 500 r.p.m.	At 1000 r.p.m	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m
52%(B)	400	38	76	320	30	61
60%(C)	375	36	71	300	29	57
68%(E)	350	33	66	280	27	53
81% (G)	330	31	62	264	25	50
86% (J)	320	30	60	255	24	48
97% (M)	305	29	58	244	23	46
118% (O)	290	28	55	230	22	44
