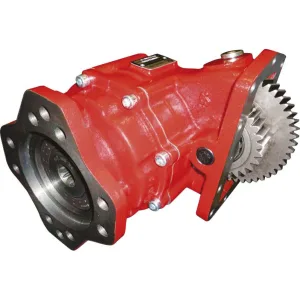

3131 Series

3131series1

Hot Shift Power Take-off, 2 gears, Hydraulic shifting and internal lubrication. Mounting on both sides of the Gearbox. Wide range of internal ratios and most standard output flanges: SAE B, BB, C or ISO 4 bolts. 3131 PTO Data Sheet | 3131, 3151, 3252 PTOs Manual | 3131 PTO Part List Engine to PTO ratio INTERNAL RATIO INTERMITTENT SERVICE […]

Variantes

Hot Shift Power Take-off, 2 gears, Hydraulic shifting and internal lubrication. Mounting on both sides of the Gearbox. Wide range of internal ratios and most standard output flanges: SAE B, BB, C or ISO 4 bolts.

3131 PTO Data Sheet | 3131, 3151, 3252 PTOs Manual | 3131 PTO Part List

Engine to PTO ratio
INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
	Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m.	Torque (Lb. FT)	At 500 r.p.m.	At. 1000 r.p.m
50%(B)	500	48	97	400	39	78
58%(C)	500	48	97	400	39	78
68%(E)	450	44	88	360	35	70
78% (G)	420	40	80	340	33	65
84% (J)	400	38	76	320	30	60
97% (M)	380	36	72	300	28	56
119% (O)	350	33	66	280	26	52

Este producto no tiene especificaciones.
