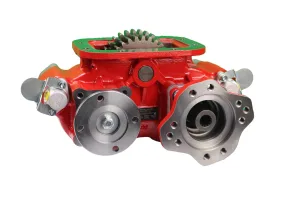

4250 SAE 8 Hole, 2 Independent outputs

4250SAE8

PTO with two independent outputs and many output shaft types: SAE B, SAE C, round shaft, etc. Different internal ratios mske it useful for many applications. 4250 PTO Data Sheet | 4250 PTO Part List Engine to PTO ratio OUTPUT INTERNAL RATIO INTERMITTENT SERVICE CONTINUOUS SERVICE Torque (Lb. FT) Power (HP) Torque (Lb. FT) Power (HP) At […]

Variantes

PTO with two independent outputs and many output shaft types: SAE B, SAE C, round shaft, etc. Different internal ratios mske it useful for many applications.

4250 PTO Data Sheet | 4250 PTO Part List

	Engine to PTO ratio
OUTPUT	INTERNAL RATIO	INTERMITTENT SERVICE			CONTINUOUS SERVICE
		Torque (Lb. FT)	Power (HP)		Torque (Lb. FT)	Power (HP)
		Torque (Lb. FT)	At 500 r.p.m.	At 1000 r.p.m.	Torque (Lb. FT)	At 500 r.p.m.	At 1000 r.p.m
1C	96%	420	40	80	300	29	57
2B	89%	420	40	80	300	29	57
1E	112%	400	38	76.5	285	27	54.5
2C	104%	420	40	80	300	29	57
1J	132%	380	36	73	270	26	52
2E	121%	400	38	76.5	285	27	54.5
1O	168%	350	33	67	250	24	48
2J	152%	380	36	73	270	26	52
