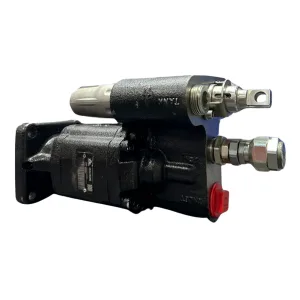

Bomba para Volquete BZ10

Bomba para volquete (Dump Pump) de alta calidad de 100 cc/rev. Nuevo diseño más reducido y con mejor rendimiento. Disponible en versión SAE B 4 taladros o ISO 7653 y eje DIN 5462. Ficha Técnica Manual de Usuário (Acción Directa) Manual de Usuário (2 Presiones)

Variantes

SKU	Sentido de giro de la bomba	Relief Valve	Mounting Flange	Peso (kg)	A (cm)	B (cm)	C (cm)
BZ102LAS254SN	L (Anti clockwise)	Single Pressure	4S SAE B 4-Bolt	-	-	-	-
BZ102LAS254DN	L (Anti clockwise)	Single Pressure	4D DIN 4-Bolt	-	-	-	-
BZ* 101/102	R (Clockwise)	Single Pressure	4S SAE B 4-Bolt	-	-	-	-
BZ102RAS254DN	R (Clockwise)	Single Pressure	4D DIN 4-Bolt	-	-	-	-
BZ102LAS254SN-2	L (Anti clockwise)	Dual Pressure	4S SAE B 4-Bolt	-	-	-	-
BZ102LAS254DN-2	L (Anti clockwise)	Dual Pressure	4D DIN 4-Bolt	-	-	-	-
BZ102RAS254SN-2	R (Clockwise)	Dual Pressure	4S SAE B 4-Bolt	-	-	-	-
BZ102RAS254DN-2	R (Clockwise)	Dual Pressure	4D DIN 4-Bolt	-	-	-	-

BZ102LAS254SN

Sentido de giro de la bomba: L (Anti clockwise)

Relief Valve: Single Pressure

Mounting Flange: 4S SAE B 4-Bolt

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

BZ102LAS254DN

Sentido de giro de la bomba: L (Anti clockwise)

Relief Valve: Single Pressure

Mounting Flange: 4D DIN 4-Bolt

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

BZ* 101/102

Sentido de giro de la bomba: R (Clockwise)

Relief Valve: Single Pressure

Mounting Flange: 4S SAE B 4-Bolt

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

BZ102RAS254DN

Sentido de giro de la bomba: R (Clockwise)

Relief Valve: Single Pressure

Mounting Flange: 4D DIN 4-Bolt

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

BZ102LAS254SN-2

Sentido de giro de la bomba: L (Anti clockwise)

Relief Valve: Dual Pressure

Mounting Flange: 4S SAE B 4-Bolt

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

BZ102LAS254DN-2

Sentido de giro de la bomba: L (Anti clockwise)

Relief Valve: Dual Pressure

Mounting Flange: 4D DIN 4-Bolt

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

BZ102RAS254SN-2

Sentido de giro de la bomba: R (Clockwise)

Relief Valve: Dual Pressure

Mounting Flange: 4S SAE B 4-Bolt

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

BZ102RAS254DN-2

Sentido de giro de la bomba: R (Clockwise)

Relief Valve: Dual Pressure

Mounting Flange: 4D DIN 4-Bolt

Peso (kg): -

A (cm): -

B (cm): -

C (cm): -

Atributo	Valor
Displacement (in3/rev)	6.1
Maximum continuous pressure (psi)	2900
Maximum peak pressure (psi)	3200
Relief valve pressure (psi)	2175
Relief vale pressure (bar)	150
Speed (r.p.m) min. (P1)	600
Speed (r.p.m) máx. (P1)	1800
Weight (Direct Mount) (lb)	53.6
Sentido de giro de la bomba	R (Clockwise), L (Anti clockwise)
Relief Valve	Dual Pressure, Single Pressure
Mounting Flange	4S SAE B 4-Bolt, 4D DIN 4-Bolt

Atributo

Valor

Displacement (in3/rev)

6.1

Maximum continuous pressure (psi)

2900

Maximum peak pressure (psi)

3200

Relief valve pressure (psi)

2175

Relief vale pressure (bar)

150

Speed (r.p.m) min. (P1)

600

Speed (r.p.m) máx. (P1)

1800

Weight (Direct Mount) (lb)

53.6

Sentido de giro de la bomba

R (Clockwise), L (Anti clockwise)

Relief Valve

Dual Pressure, Single Pressure

Mounting Flange

4S SAE B 4-Bolt, 4D DIN 4-Bolt
