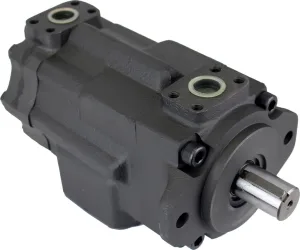

DT6CC Double Vane Pump

DT6CCdvp

Vane pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Available Flows: 3, 5, 6, 8, 10, 12, 14, 17, 20, 22, 25, 28 & 31 Gal/min. @ 1200 rpm. SHAFT END COVER END WEIGHT (Kgs.) PRESSURE […]

Variantes

Vane pumps are uni-directional units with a great versatility and a silent running.
Their cartridges are replaceable in a very easy way.
Output ports configuration can be customized.
Available Flows: 3, 5, 6, 8, 10, 12, 14, 17, 20, 22, 25, 28 & 31 Gal/min. @ 1200 rpm.

SHAFT END				COVER END				WEIGHT (Kgs.)	PRESSURE (Bar)		SPEED (rpm)		FRONT FLANGE STANDARD SAE j744c ISO 3019-1	SAE 4 HOLES FLANGE
FLOW		CARTIDGE MODEL	THEORETICAL DISPLACEMENT CM3/REV	FLOW		CARTIDGE MODEL	THEORETICAL DISPLACEMENT CM3/REV		contin.	Intermit.	Max.	Min.		Suction S
Lts. at 1000 rpm	Gal. At 1200 rpm	CARTIDGE MODEL	THEORETICAL DISPLACEMENT CM3/REV	Lts. At 1000 rpm	Gal. At 1200 rpm	CARTIDGE MODEL	THEORETICAL DISPLACEMENT CM3/REV		contin.	Intermit.	Max.	Min.		Suction S
11	3	003 a 031	10.8 a 100	11	3	003 a 031	10.8 a 100	26	275	240	2800	500	SAE B	2 1/2″ – 3″
17	5			17	5
21	6			21	6
26	8			26	8
34	10			34	10
37	12			37	12
46	14			46	14
58	17			58	17
64	20			64	20
70	22			70	22
79	25			79	25
89	28			89	28
100	31			100	31
