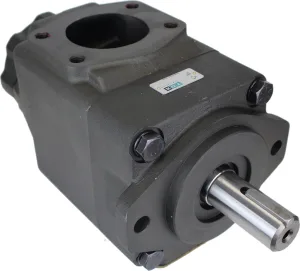

DT6EC Double Vane Pump

DT6ECdvp
BOMBAS DOBLES - D

Vane pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Available Flows: 1st.- 42, 45, 50, 52, 57, 62, 66, 72 & 85 Gal/min. @ 1200 rpm 2nd.- 3, 5, 6, 8, 10, 12, 14, 17, 20, 22, 25, […]

Variantes

Vane pumps are uni-directional units with a great versatility and a silent running.
Their cartridges are replaceable in a very easy way.
Output ports configuration can be customized.

Available Flows:

  • 1st.- 42, 45, 50, 52, 57, 62, 66, 72 & 85 Gal/min. @ 1200 rpm
  • 2nd.- 3, 5, 6, 8, 10, 12, 14, 17, 20, 22, 25, 28 & 31 Gal/min. @ 1200 rpm
SHAFT END COVER END WEIGHT (Kgs.) FRONT FLANGE STANDARD SAE j744c ISO 3019-1 SAE 4 HOLES FLANGE
FLOW PRESSURE (Bar) SPEED (rpm) CARTIDGE MODEL THEORETICAL DISPLACEMENT FLOW PRESSURE (Bar) SPEED (rpm) CARTIDGE MODEL THEORETICAL DISPLACEMENT Suction S
Lts. at 1000 rpm Gal. At 1200 rpm Intermit. contin. Max. Min. Lts. At 1000 rpm Gal. At 1200 rpm Intermit. contin. Max. Min.
132 42 240 210 2200 500 042 a 085 132.3 a 269.8 11 3 275 240 2800 500 003 a 031 10.8 a 100 55 SAE C 3 1/2″
142 45 17 5
156 50 21 6
165 52 26 8
197 62 34 10
213 66 37 12
227 72 46 14
270 85 58 17
64 20
70 22
79 25
89 28
100 31



Este producto no tiene especificaciones.
