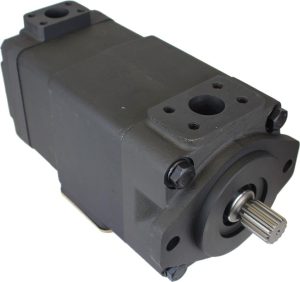

DT6ED Double Vane Pump

DT6EDdvp
BOMBAS DOBLES - D

Vane pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Available Flows: 1st.- 42, 45, 50, 52, 57, 62, 66, 72 & 85 Gal/min. @ 1200 rpm 2nd.- 14, 20, 24, 28, 31, 35, 38, 42, 45, 50 & […]

Variantes

Vane pumps are uni-directional units with a great versatility and a silent running.
Their cartridges are replaceable in a very easy way.
Output ports configuration can be customized.

Available Flows:

  • 1st.- 42, 45, 50, 52, 57, 62, 66, 72 & 85 Gal/min. @ 1200 rpm
  • 2nd.- 14, 20, 24, 28, 31, 35, 38, 42, 45, 50 & 61 Gal/min. @ 1200 rpm
SHAFT END COVER END WEIGHT (Kgs.) FRONT FLANGE STANDARD SAE j744c ISO 3019-1 SAE 4 HOLES FLANGE
FLOW PRESSURE (Bar) SPEED (rpm) CARTIDGE MODEL THEORETICAL DISPLACEMENT FLOW PRESSURE (Bar) SPEED (rpm) CARTIDGE MODEL THEORETICAL DISPLACEMENT Suction S
Lts. at 1000 rpm Gal. At 1200 rpm Intermit. contin. Max. Min. Lts. At 1000 rpm Gal. At 1200 rpm Intermit. contin. Max. Min.
132 42 240 210 2200 500 042 a 085 132.3 a 269.8 48 14 240 210 2500 500 014 a 061 47.6 a 190.5 66 SAE C 4″
142 45 66 20
156 50 80 24
165 52 90 28
197 62 98 31
213 66 111 35
227 72 120 38
270 85 136 42
146 45
158 50
191 61



Este producto no tiene especificaciones.
