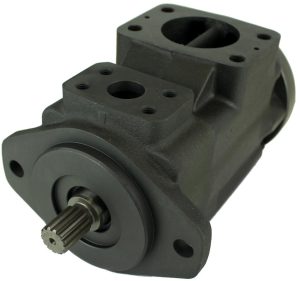

VQ4T Thru Drive Single Vane Pump

Gingle cartdrige, 10 Vanes pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Thru Drive Single Vane Pump, to reach a double or triple systems. Available in 3 different mounting flanges: SAE A, SAE B & SAE C. […]

Variantes

Gingle cartdrige, 10 Vanes pumps are uni-directional units with a great versatility and a silent running. Their cartridges are replaceable in a very easy way. Output ports configuration can be customized. Thru Drive Single Vane Pump, to reach a double or triple systems. Available in 3 different mounting flanges: SAE A, SAE B & SAE C.

FLOW SPEED (rpm) PRESSURE (Bar) NOMINAL POWER CONNECTION WEIGHT (Kgs.)
Lts. at 1000 rpm Gal.at 1200 rpm Reduction Mín. Máx. contin. Intermit. Inlet Outlet
32 10 4.5 600 2500
1800
(VS)
175 210 6.9 Ø64 Ø25.4 19.5
40 12 5.7 10.4
45 14 5.7 11.6
55 17 5.8 13.8
60 19 5.8 14.6
67 21 6 16.8
80 24 6.2 1500 125 150 20.3
88 27 6.5 23.8



Este producto no tiene especificaciones.
