067603 SIDE MOUNT VACUUM – SINGLE ACTING
IVECO

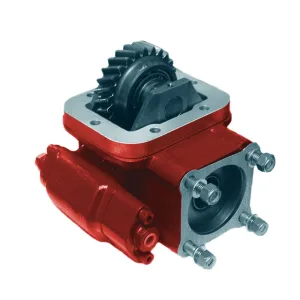

Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Vacuum mechanic and pneumatic shifting. Mounting ...
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on right 6 bolts-window of the Gearbox.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 065102 | Flange | 15.00 | 174.00 | 164.00 | 123.00 |
| 065103 | Pump (DIN 5462) | 15.00 | 174.00 | 164.00 | 123.00 |
Power Take-off two gears, constant mesh, to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on right 6 bolts-window of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Right |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 15 |
| Engine to PTO ratio | 1: 0.85 |
| Gearbox | 2838.5 |
| Note A | Air connection, thread 1/4” BSP |
| Note B | Rotation |
| Note C | Passing contact switch. P/N 100070028 |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Backlash Check Plug |
| Output type | Flange, Pump (DIN 5462) |
