Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Toma de fuerza de dos piñones en toma constante para conectar bombas ISO 4 taladros. Accionamiento neumático. Montaje sobre el lado derecho de la caja de cambios. RELACIÓN INTERNA R (137%) S (150%) T (165%) Relación motor – Toma de fuerza Normal 1:0,615 1:0,673 1:0,741 Larga 1:0,756 1:0,827 1:0,910

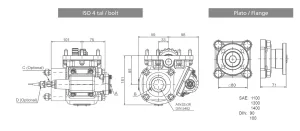

| SKU | Output type | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 130802R | Plato | R (137%) | 12.00 | 176.00 | 197.00 | 161.00 |
| 130802S | Plato | S (150%) | 12.00 | 176.00 | 197.00 | 161.00 |
| 130802T | Plato | T (165%) | 12.00 | 176.00 | 197.00 | 161.00 |
| 130803R | Bomba (DIN 5462) | R (137%) | 12.00 | 176.00 | 197.00 | 161.00 |
| 130803S | Bomba (DIN 5462) | S (150%) | 12.00 | 176.00 | 197.00 | 161.00 |
| 130803 | Bomba (DIN 5462) | T (165%) | 12.00 | 176.00 | 197.00 | 161.00 |
| 130830R | Pump (UNI) | R (137%) | 12.00 | 176.00 | 197.00 | 161.00 |
| 130830S | Pump (UNI) | S (150%) | 12.00 | 176.00 | 197.00 | 161.00 |
| 130830T | Pump (UNI) | T (165%) | 12.00 | 176.00 | 197.00 | 161.00 |
Toma de fuerza de dos piñones en toma constante para conectar bombas ISO 4 taladros. Accionamiento neumático. Montaje sobre el lado derecho de la caja de cambios.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Derecho |
| Sentido de giro de la bomba | R (Clockwise) |
| Weight (Kg) | 12 |
| Working temperature | -45ºC + 120ºC |
| Note A | Toma de aire, rosca 1/4” GAS |
| Note B | Sentido de giro |
| Note D | Connector with 3m of cable P/N. 9026899 |
| Note E | Indicador de funcionamiento. Código 100070012 |
| Gearbox | MODEL 14, MODEL 15 |
| Output type | Bomba (DIN 5462), Plato, Flange, Pump (DIN 5462), Pump (UNI) |
| Internal ratio | R (137%), S (150%), T (165%) |
