07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

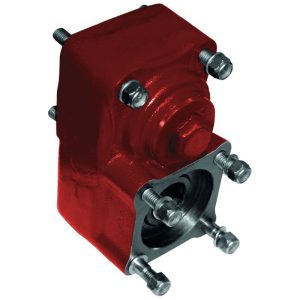

Kit adaptador – inversor de giro, relación 1:1,04 ó 1:1,32. Para montar bombas ISO 4 taladros. Tambien disponible en versión de plato.
| SKU | Ratio | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 7012404 | 1: 1.04 | Plato | 11.00 | 112.00 | 57.00 | 192.00 |
| 7012504 | 1: 1.04 | Bomba | 11.00 | 112.00 | 57.00 | 192.00 |
| 705604 | 1: 1.32 | Plato | 11.00 | 112.00 | 57.00 | 192.00 |
| 7012404 | 1: 1.32 | Bomba | 11.00 | 112.00 | 57.00 | 192.00 |
| 705804 | 1: 1.32 ORIGINAL PTO, (MB G60/G85 1:1) | Bomba | 11.00 | 112.00 | 57.00 | 192.00 |
Kit adaptador – inversor de giro, relación 1:1,04 ó 1:1,32. Para montar bombas ISO 4 taladros. Tambien disponible en versión de plato.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V. // 32 Kw |
| Weight (Kg) | 11 |
| Note A | Tapones de drenaje del aceite |
| Ratio | 1: 1.04, 1: 1.32, 1: 1.32 ORIGINAL PTO, (MB G60/G85 1:1) |
| Output type | Plato, Bomba |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
