0723450 2 Independent Outputs – Closed pump cover
MERCEDES
Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
Power Take-off one gear to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 5 bolts-window of the Gearbox. Engine to PTO ratio Gearbox Ratio G3 36-5/8.98 1:0,394 G3 40-5/7.508 1:0,472 G3 45-6/8.5 1:0,460 G3 50-5/8.5 1:0,420 G3 55-6/8.5 1:0,460 G3 60-5/5.4 1:0,652 G3 60-5/6.106 1:0,581 G3 60-5/7.5 1:0,472 G3 61-5/6.1 1:0,578
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 0718802 | Flange | 6.00 | 118.50 | 106.00 | 106.00 |
| 0718803 | Pump (DIN 5462) | 6.00 | 118.50 | 106.00 | 106.00 |

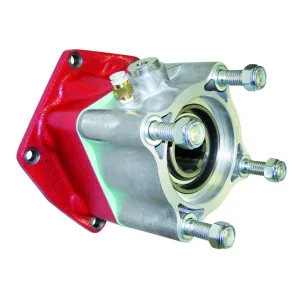

Power Take-off one gear to connect ISO 4 bolts pumps. Pneumatic shifting. Mounting on rear 5 bolts-window of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 500 |
| Intermittent Torque (Nm) | 700 |
| Power (1000 r.p.m.) | 70 C.V // 52 KW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Pressure switch P/N (100070018) |
| Note D | Passing contact switch (9024999) |
| Gearbox | G3 36-5-8.98, G3 40-5-7.508, G3 45-6-8.5, G3 50-5-8.5, G3 55-6-8.5, G3 60-5-5.4, G3 60-5-6.106, G3 60-5-7.5, G3 61-5-6.1 |
| Output type | Flange, Pump (DIN 5462) |
