0723450 2 Independent Outputs – Closed pump cover
MERCEDES

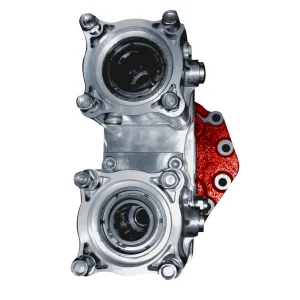

Power Take-off twin output 3 gears, ratio (top output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 8 bolts-wi...
Power Take-off twin output 3 gears, ratio (upper output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 7 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch. Engine to PTO ratio Upper Output Engine to PTO ratio Bottom Output Gearbox Ratio Gearbox Ratio G4 65-6/9 1:0,610 G4 65-6/9 1:0,807 65-7/11 […]
| SKU | Upper output type | Bottom output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 0719552 | Flange | Flange | 12.50 | 239.00 | 110.00 | 262.00 |
| 0719551 | Flange | Pump | 12.50 | 239.00 | 110.00 | 262.00 |
| 0719550 | Pump (DIN 5462) | Flange | 12.50 | 239.00 | 110.00 | 262.00 |
| 0719553 | Pump (DIN 5462) | Pump (DIN 5462) | 12.50 | 239.00 | 110.00 | 262.00 |
Power Take-off twin output 3 gears, ratio (upper output) 1:1,30. Ratio (bottom output) 1:1,72. Mounting on rear 7 bolts-window of the Gearbox. Pneumatic shifting. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Weight (Kg) | 12.5 |
| Mounting Position | Rear |
| Max. Continuous Torque for both outputs | 490 Nm. -Don´t exceed this torque with both output running.- |
| Continuous Torque (Nm) | 350 (Upper output), 300 (Bottom output) |
| Intermittent Torque (Nm) | 490 (Upper output), 420 (Bottom output) |
| Power (1000 r.p.m.) | 52 C.V // 39 kW (Upper Output), 42 C.V // 32 kW (Bottom Output) |
| Sentido de giro de la bomba | R (Clockwise) |
| Flange rotation | L (Anti ClockWise) |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Oil drain plug |
| Note D | Passing contact switch (9024999) |
| Note E | Pressure switch. P/N 100070018 |
| Gearbox | G4 110-6-9, G4 65-6-9, G4 65-7-11, G4 95-6-9, G4 95-7-11 |
| Upper output type | Flange, Pump (DIN 5462) |
| Bottom output type | Pump, Flange, Pump (DIN 5462) |
