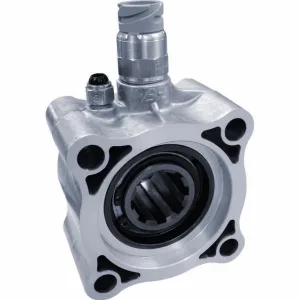

109903 Rear Pneumatic (1:1,32)
ZF
Power Take-off two gears, internal ratio 1:1,32, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on rear 4 bo...
Power Take-off one gear, internal ratio 1:1 to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on rear 4 bolts-window of the Gearbox. Optional: Passing contact switch. RATIO ENGINE TO PTO RATIO Normal High S6-36 / 6.06 1: 0,583 S6-36 / 6.93 – 0.8 1: 0,510 S6-36 / 7.43 – 1.0 1: 0,480 S6-36 / […]
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 1022603 | Pump (DIN 5462) | - | - | - | - |
| 1022602 | Flange | - | - | - | - |
Power Take-off one gear, internal ratio 1:1 to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on rear 4 bolts-window of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Max. torque (Nm) | 590 |
| Power (1000 r.p.m.) | 84 CV // 63 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 2.4 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Pressure switch P/N (100070018) |
| Note D | Passing contact switch (9024999) |
| Gearbox | S6-36-7.43-0.85+GV36, S6-36-7.43-1.0, S6-36-8.97-0.83+GV36, S6-36-8.97-1.0, 6S-700/6.02-0.79, 6S-850/6.72-0.79, 6S-850/8.51-1.0, S6-36-6.06, S6-36-6.93-0.8 |
| Output type | Flange, Pump (DIN 5462) |
