109903 Rear Pneumatic (1:1,32)
ZF
Power Take-off two gears, internal ratio 1:1,32, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on rear 4 bo...

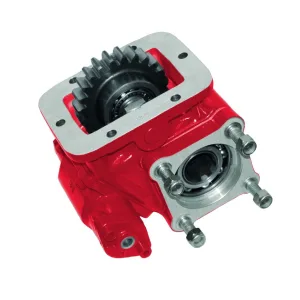

Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on left side of the Gearbox. Optional: Passing contact switch. NOTES Note A Air connection, thread 1/4” BSP Note B Rotation Note C Passing contact switch. P/N 100070022 Note D Connector with 3m. of cable P/N 9026899
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 104603 | Pump (DIN 5462) | - | - | - | - |
| 103902 | Flange | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on left side of the Gearbox. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 300 |
| Intermittent Torque (Nm) | 420 |
| Power (1000 r.p.m.) | 42 C.V // 32 kW |
| Mounting Position | Left |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 9 |
| Engine to PTO ratio | 1: 1,545 |
| Gearbox | S5-42/7.55 |
| Output type | Flange, Pump (DIN 5462) |
