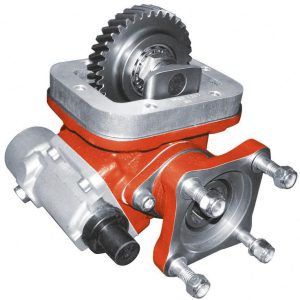

163703 Side Mount Vacuum – Single Acting
TOYOTA
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum , mechanical and pneumatic shifting, mount...
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum mechanical and pneumatic shifting, mounting on left side of the Gearbox. NOTES Kit vacuum, Single acting 12V. 9027899 Note A Operation indicator. P/N 100070001 Note B Rotation Note C Connector with 3m. of cable P/N 906599 Note D Engage PTO, thread 1/8” […]
| SKU | Output type | Shifter type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 163803 | Pump (DIN 5462) | Vacuum Shifting | - | - | - | - |
| 163803 | Pump (DIN 5462) | Mechanical Shifting | - | - | - | - |
| 163802 | Flange | Vacuum Shifting | - | - | - | - |
| 161702 | Flange | Mechanical Shifting | - | - | - | - |
Power Take-off two gears, constant mesh, to connect Iso 4 bolts pumps. Vacuum mechanical and pneumatic shifting, mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 200 |
| Intermittent Torque (Nm) | 280 |
| Power (1000 r.p.m.) | 28 C.V // 21 kW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Clockwise |
| Weight (Kg) | 12,3 |
| Engine to PTO ratio | 1: 0,820 |
| Gearbox | M155, TOYOTA 400 |
| Output type | Flange, Pump (DIN 5462) |
| Shifter type | Vacuum Shifting, Mechanical Shifting |
