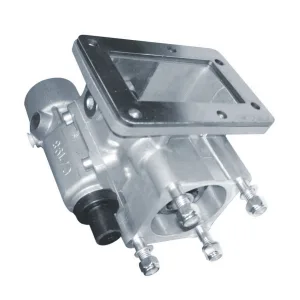

177703 Side Mount Pneumatic
MITSUBISHI
Power Take-off two gears constant mesh, to connect UNI 3 bolts pumps. Pneumatic shifting. Mounting on left side of the G...
Power Take-off two gears constant mesh, to connect ISO 4 bolts pumps. Vacuum mechanical and pneumatic shifting. Mounting on left side of the Gearbox. Note A Engage PTO, thread 1/4” BSP Note B Rotation Note C Passing contact switch. P/N 100070017 Note D Connector with 3m. of cable P/N 9026899 Note E Backlash check plug […]
| SKU | Output type | Shifting | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|
| 179902 | Flange | Mechanical | - | - | - | - |
| 179802 | Flange | Pneumatic | - | - | - | - |
| 174702-1-1 | Pump (DIN 5462) | Mechanical | - | - | - | - |
| 173402-1-1 | Pump (DIN 5462) | Pneumatic | - | - | - | - |
Power Take-off two gears constant mesh, to connect ISO 4 bolts pumps. Vacuum mechanical and pneumatic shifting. Mounting on left side of the Gearbox.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 150 |
| Intermittent Torque (Nm) | 210 |
| Power (1000 r.p.m.) | 21 C.V // 16 kW |
| Mounting Position | Top |
| Sentido de giro de la bomba | Anti Clockwise |
| Weight (Kg) | 7 |
| Gearbox | M038S5(MT), M038S6(AMT) |
| Output type | Flange, Pump (DIN 5462) |
| Shifting | Pneumatic, Mechanical |
