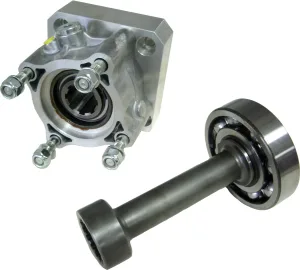

280203 REAR PNEUMATIC (1: 1.32)
MAZ
Power Take-off two gears, with an internal ratio of 1:1.32 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shi...
Power Take-off two gears, with an internal ratio of 1:1 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps. Optional: Passing contact switch.
| SKU | Output type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 280302 | Flange | 5.70 | 266.50 | 106.00 | 106.00 |
| 280303 | Pump (DIN 5462) | 5.70 | 266.50 | 106.00 | 106.00 |
Power Take-off two gears, with an internal ratio of 1:1 mounting on rear 4 bolts-window of the Gearbox. Pneumatic shifting, to connect ISO 4 bolts pumps. Optional: Passing contact switch.
| Atributo | Valor |
|---|---|
| Continuous Torque (Nm) | 430 |
| Intermittent Torque (Nm) | 602 |
| Power (1000 r.p.m.) | 61 C.V // 45 kW |
| Mounting Position | Rear |
| Sentido de giro de la bomba | L (Anti clockwise) |
| Weight (Kg) | 5.7 |
| Engine to PTO ratio | 1: 0.79 |
| Note A | Air connection, thread 1/8” BSP |
| Note B | Rotation |
| Note C | Pressure switch P/N (100070018) |
| Note D | Passing contact switch (9024999) |
| Note E | Backlash Check Plug |
| Gearbox | YAMZ-239 |
| Output type | Flange, Pump (DIN 5462) |
