07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

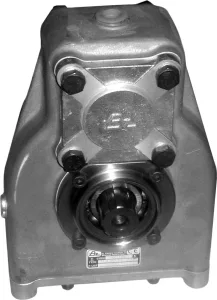

Medium Power Gear up box, available with different internal ratios. Independent output is also possible through a mechanical or pneumatic piston installation. Technical Datasheet
| SKU | Internal ratio | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 600499 | 1: 1.3 | 15.60 | 321.00 | 200.00 | 184.00 |
| 600399 | 1: 2.28 | 15.26 | 321.00 | 200.00 | 184.00 |
| 600299 | 1: 3.6 | 16.47 | 321.00 | 200.00 | 184.00 |
Medium Power Gear up box, available with different internal ratios. Independent output is also possible through a mechanical or pneumatic piston installation.
| Atributo | Valor |
|---|---|
| Maximum torque (Nm) Cont | 350 |
| Max. power continuous | 50 C.V. // 37 Kw |
| Net weight (kg) | 22 |
| Rotation input - output | Opposite |
| Note A | Oil vent |
| Note B | Oil drain plug |
| Note C | Oil level plug |
| Note D | Flanges drive |
| Note E | Max. mounting angle: 15º |
| Oil type: | SAE 80W 90 |
| Internal ratio | 1: 1.3, 1: 2.28, 1: 3.6 |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
