07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

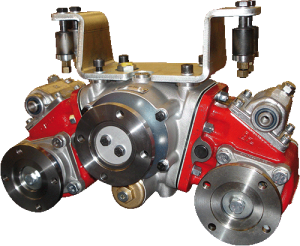

Twin PTO apertures for mounting 2 PTO’s.Twin PTO housings gives high flexibility to choose the best position for the auxiliary shafts.High range of internal ratios to get the suitable for any application. Technical Datasheet Auxiliary PTO data Internal ratio to Auxiliary PTO E (87 %) J (95 %) O (125%) R (137%) S (150%) T […]
| SKU | Shifting | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 6013399 | Pneumatic shifting | 49.00 | 457.00 | 210.00 | 270.00 |
| 6013299 | Mechanical shifting | 49.00 | 457.00 | 210.00 | 270.00 |
Twin PTO apertures for mounting 2 PTO’s.Twin PTO housings gives high flexibility to choose the best position for the auxiliary shafts.High range of internal ratios to get the suitable for any application.
| Atributo | Valor |
|---|---|
| Maximum torque on main transmission (Nm) | 4000 |
| Net weight (kg) | 49 |
| Rotation PTO | Same as engine |
| Note A | Rotation |
| Note B | Pneumatic Shifting |
| Note C | Optional Vertical support P/N 9052199 |
| Note D | Optional Horizontal support P/N 9073999 |
| Oil type: | SAE 80W 90 |
| Shifting | Pneumatic shifting, Mechanical shifting |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
