07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...
Adapter Kit for close couple PTO’s to convert in output shaft drive releases (Taper roller bearing) SAE 1100 / 1300 / 1400 or DIN 100 / 120. Technical Datasheet Notes SAE DIN 1100 1300 1400 90 100 120 A 88 97 116 90 100 120 B 69.9 79.4 95.25 74 84 101.5 C 57.2 60.2 […]
| SKU | Release | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 7026704 | DIN 90 | - | - | - | - |
| 700104 | SAE 1100 | 4.00 | 98.00 | 80.00 | 80.00 |
| 700204 | SAE 1300 | 4.00 | 98.00 | 80.00 | 80.00 |
| 700304 | SAE 1400 | 4.00 | 98.00 | 80.00 | 80.00 |
| 706804 | DIN 100 | 4.00 | 98.00 | 80.00 | 80.00 |
| 7017004 | DIN 120 | 4.00 | 98.00 | 80.00 | 80.00 |

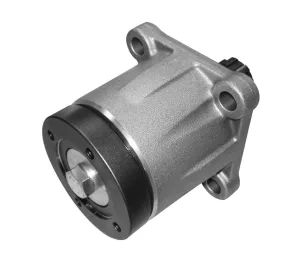

Adapter Kit for close couple PTO’s to convert in output shaft drive releases (Taper roller bearing) SAE 1100 / 1300 / 1400 or DIN 100 / 120.
| Atributo | Valor |
|---|---|
| Max. torque (Nm) | 300 (SAE 1100), 450 (SAE 1300), 600 (SAE 1400), 450 (DIN 90 / 100), 600 (DIN 120) |
| Note A | Flange drive |
| Release | SAE 1100, SAE 1300, SAE 1400, DIN 90, DIN 100, DIN 120 |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
