Connecting this unit to the crankshaft of small vehicles, is capable of running a hydraulic pump while the vehicle is working.
| SKU | Type | Voltage | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|---|

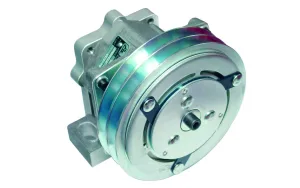

| 901020 | Electromagnetic clutch for pump ISO 4 bolt | 12V | - | - | - | - |
| 901120 | Electromagnetic clutch aluminium pump shaft Ø16 with key | 12V | - | - | - | - |
| 901520 | Electromagnetic clutch for pump SAE “B” 13t | 12V | - | - | - | - |
| 901220 | Electromagnetic clutch for pump ISO 4 bolt | 24V | - | - | - | - |
| 901320 | Electromagnetic clutch aluminium pump shaft Ø16 with key | 24V | - | - | - | - |
| 901620 | Electromagnetic clutch for pump SAE “B” 13t | 24V | - | - | - | - |
Connecting this unit to the crankshaft of small vehicles, is capable of running a hydraulic pump while the vehicle is working.
| Atributo | Valor |
|---|---|
| Nominal Torque | 140 Nm |
| Operating temperature | +45º / -25º |
| Displacement (cm3/rev) | 20 |
| Speed (r.p.m) min. (P1) | 300 |
| Speed (r.p.m) máx. (P1) | 2000 |
| Maximum continuos pressure (P1) (bar) | 190 |
| Maximum intermitent pressure (p) (bar) | 200 |
| Input Pressure (recommended) | 0.7÷ 3 bar (abs) |
| Temperatures | From -25ºC to 110ºC |
| Oil recommended | ISO / DIN hydraulic & fire resistant oil. |
| Note: | The clutch can transmit the nominal torque after 50 - 100 connecting cycles (Running in). The increase of temperature reduces the transmitted torque (the torque to 70ºC is reduced 20%) |
| Type | Electromagnetic clutch for pump ISO 4 bolt, Electromagnetic clutch aluminium pump shaft Ø16 with key, Electromagnetic clutch for pump SAE “B” 13t |
| Voltage | 12V, 24V |
