07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

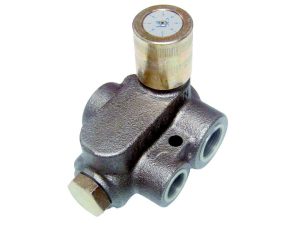

3-Way Priority flow divider with manual regulation selector. For applications where two different hydraulic circuits are to be serviced with a single pump.
| SKU | Thread | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 901299 | 1/2" BSP | 1.27 | 110.00 | - | 99.00 |
| 901699 | 3/4" BSP compensated | 1.75 | 110.00 | - | 99.00 |
3-Way Priority flow divider with manual regulation selector. For applications where two different hydraulic circuits are to be serviced with a single pump.
| Atributo | Valor |
|---|---|
| Flow | 40 L/min (1/2" BSP), 70 L/min (3/4" BSP compensated) |
| Max. Pressure: | 250 Bar |
| Thread (IN / B) | 1/2” GAS (1/2" BSP), 3/4" GAS (3/4" BSP compensated) |
| Thread (P) | 3/8” GAS (1/2" BSP), 1/2" GAS (3/4" BSP compensated) |
| Thread | 1/2" BSP, 3/4" BSP compensated |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
