07264K03 Rear Pneumatic – Closed pump cover
MERCEDES
Base PTO + mounting plate kit (excluding shaft), heavy-duty aluminium housing for mounting ISO 4-bolt pumps. Pneumatic s...

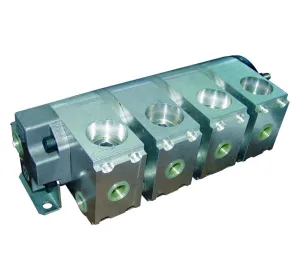

This device uniformly divides the input flow to two or four hydraulic lines.
| SKU | Displacement (cm3/rev) | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 901411 | 2 | - | - | - | - |
| 901311 | 4 | - | - | - | - |
This device uniformly divides the input flow to two or four hydraulic lines.
| Atributo | Valor |
|---|---|
| Dimensions A | In. 1/2” BSP |
| Dimensions B | 2 Outs. 3/8 BSP (2) ; 4 Outs. 3/8 BSP (4) |
| Maximum continuos pressure (P1) (bar) | 250 |
| Maximum peak pressure (P3) (bar) | 280 |
| Speed (r.p.m) min. (P1) | 900 |
| Speed (r.p.m) máx. (P1) | 2900 |
| Max. inlet delivery (Lt/min) | 35 |
| Displacement (cm3/rev) | 2, 4 |
Oil tanks for chassis mounting with built-in distributor. Finished in painted steel.
