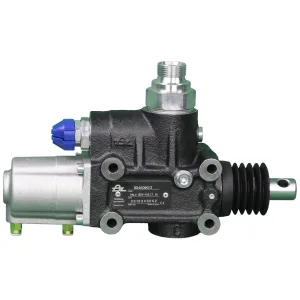

150 liters proportional open circuit or close circuit tipping valve, pneumatic operated, with 350 bar relief valve. It also includes check valve, pull-push end of stroke, pressure switch as option and pressure connection port.
| SKU | Type | Peso (kg) | A (cm) | B (cm) | C (cm) |
|---|---|---|---|---|---|
| 9044190/3 | BZDP 150 (pull) | 5.40 | 289.00 | 68.00 | 155.00 |
| 9041890/3 | BZDP 150 (push) | 5.40 | 270.00 | 68.00 | 155.00 |
| 9045190/3 | BZV 150-2V (push) | 5.40 | 339.00 | 68.00 | 155.00 |
| 9045090/3 | BZV 150-2V (pull) | 5.40 | 270.00 | 68.00 | 155.00 |
| 9045290/3 | BZVP 150 (push- pull) | 5.40 | 270.00 | 68.00 | 155.00 |
150 liters proportional open circuit or close circuit tipping valve, pneumatic operated, with 350 bar relief valve. It also includes check valve, pull-push end of stroke, pressure switch as option and pressure connection port.
| Atributo | Valor |
|---|---|
| Input Flow | 100 L. |
| Low Flow | 150 L. |
| Max. Pressure: | 350 Bar |
| Thread | 1” BSP |
| Note A | Low 1/8” BSP |
| Note B | Tipping 1/8” BSP |
| Note D | Rapid 1/8” BSP |
| Note E | Slow 1/8” BSP |
| Note F | Proportional Lowering 1/8”BSP |
| OPTIONAL: Max.torque wrench for base plate screws | 20 Nm. P/N: 9043690 |
| Type | BZDP 150 (pull), BZDP 150 (push), BZV 150-2V (push), BZV 150-2V (pull), BZVP 150 (push- pull) |
